Functions of Surface Treatments
Pretreatments and functional coatings endow automotive and general industrial products,
steel, beverage cans, and various other materials with functions.
Pretreatment Agents
Automotives & general industry
Our products form conversion coatings on the surface of materials such as steel, zinc, and aluminum, which endows the material with superior corrosion resistance and coating adhesion in addition to being a good pretreatment.
| Degreasing Agents | SURFCLEANER series |
|---|---|
| Activating Agents | SURFFINE series |
| Conversion Coatings |
|
| Post-treatment Agents | SURFCOAT series |
We have a wide lineup to satisfy customers with various requirements, including environmentally friendly options.

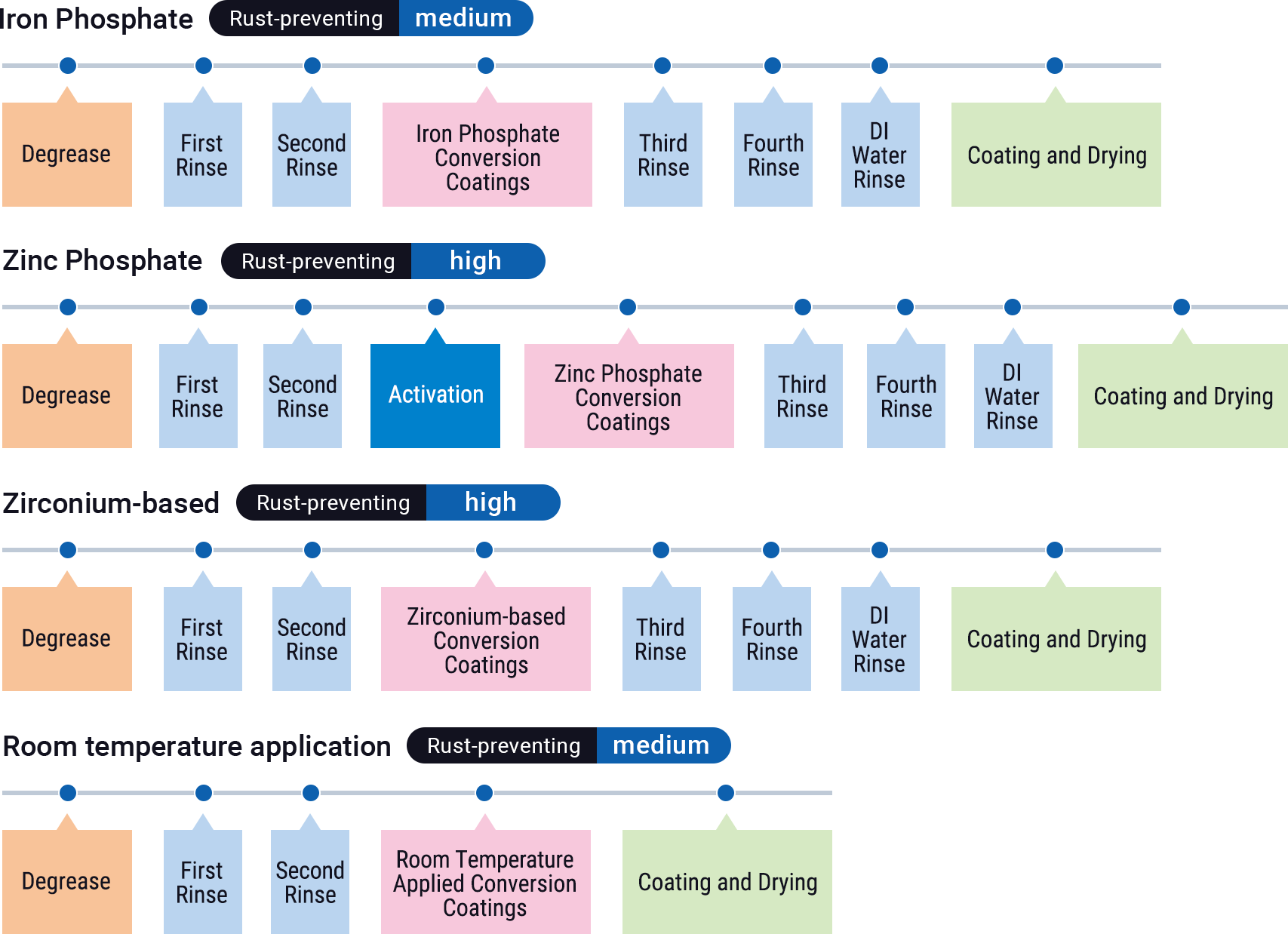

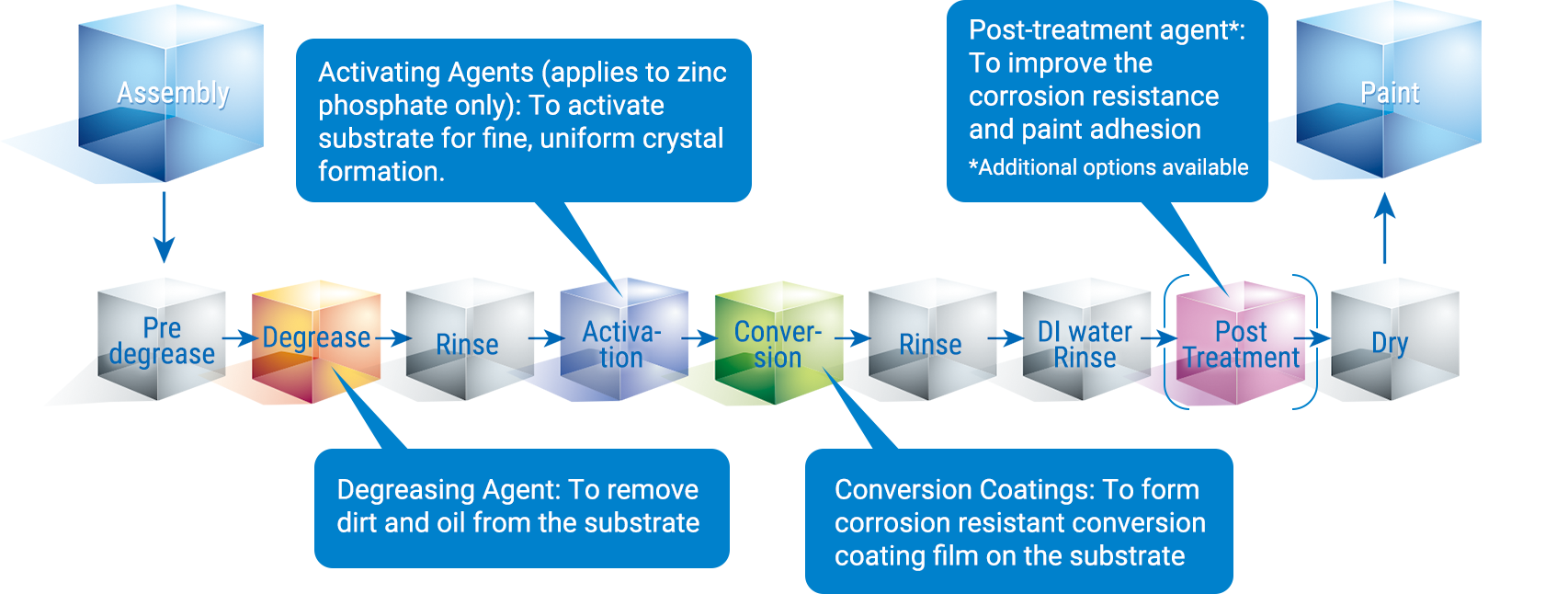

Process
Process with conversion coatings
Special
Feature
Degreasing agents
Removes grease from the material surface and assists the formation of coatings
| Compatible materials |
Features | Product Name | Appearance | Application | Standard Condition | Pictograms | |
|---|---|---|---|---|---|---|---|
| Temp. (°C) | Time (sec.) | ||||||
| Steel, zinc plating, aluminum, etc. | Standard | SURFCLEANER 53NF |
Powder | Dip | 40-60 | 60-300 | 9 |
| SURFCLEANER 53S NF |
Powder | Spray | 40-50 | 60-180 | 568 | ||
| SURFCLEANER SD350NF |
Powder | Spray Dip |
40-50 | 60-180 | 678 | ||
| Not containing phosphorus or nitrogen | SURFCLEANER EC90 series |
Powder | Spray Dip |
40-50 | 60-180 | 5678 | |
| Less maintenance | SURFCLEANER SD600 series |
Powder | Spray Dip |
40-50 | 60-180 | 678 | |
| Less maintenance, degreasing at room temperature |
SURFCLEANER SD600RT |
Powder | Spray | RT-40 | 60-180 | 5689 | |
| For closed systems | SURFCLEANER CS310 |
Powder | Spray | 50-60 | 60-180 | 678 | |
| Non-silicate | SURFCLEANER 75 N-1 NF |
Powder | Spray | 50-60 | 60-180 | 678 | |
| Aluminum | Alkaline etching agent | SURFCLEANER C1067 series |
Liquid | Spray Dip |
35-85 | 60-600 | 5810 |
Pictograms may vary by product. Please contact us for details.
Iron phosphate conversion agents
Forms an iron phosphate conversion coating and endows the material surface with corrosion resistance and adhesion
| Compatible materials |
Features | Product Name | Appearance | Application | Standard Condition | Pictograms | |
|---|---|---|---|---|---|---|---|
| Temp. (°C) | Time (sec.) | ||||||
| Steel | Standard, not containing Harmful Substances of the Water Pollution Prevention Act | SURFTEX 1106N-2 |
Liquid | Spray Dip |
40-50 | 120-180 | 5 |
| High reactivity, not containing Harmful Substances of the Water Pollution Prevention Act | SURFPREP 301 |
Liquid | Spray Dip |
40-50 | 60-180 | 5 | |
| For closed systems | SURFPREP 301 N-1 |
Liquid | Spray Dip |
50-70 | 120-180 | 5 | |
| Low-temperature conversion coating, high reactivity | SURFTEX 6000 |
Liquid | Spray Dip |
30-50 | 60-180 | 5 | |
| Degreasing and conversion coating can be accomplished simultaneously | SURFTEX SE5200 series |
Powder | Spray | 40-50 | 120-180 | 5 | |
| Room temperature conversion coating, not containing Harmful Substances of the Water Pollution Prevention Act | SURFPREP 500RT |
Liquid | Spray Dip |
RT-40 | 120-180 | 5 | |
Pictograms may vary by product. Please contact us for details.
Activating agents for zinc phosphate
Creates the starting point of the conversion coating and assists the formation of a fine, even coating
| Compatible materials |
Features | Product Name | Appearance | Application | Standard Condition | Pictograms | |
|---|---|---|---|---|---|---|---|
| Temp. (°C) | Time (sec.) | ||||||
| Steel, zinc plating, aluminum, etc. | Ti type standard | SURFFINE 5N series | Powder | Spray Dip |
RT-40 | 15-180 | - |
| Ti type high stability | SURFFINE 7 | Powder | Spray Dip |
RT-40 | 15-180 | - | |
| Liquid and fine coating formation type |
SURFFINE GL1 | Liquid | Spray Dip |
RT-40 | 15-180 | - | |
Pictograms may vary by product. Please contact us for details.
Zinc phosphate conversion agents
Forms a zinc phosphate conversion coating and endows the material surface with superior corrosion resistance and adhesion
| Compatible materials |
Features | Product Name | Appearance | Application | Standard Condition | Pictograms | |
|---|---|---|---|---|---|---|---|
| Temp. (°C) | Time (sec.) | ||||||
| Steel, zinc plating, aluminum, etc. | Standard | SURFDINE SELECT series |
Liquid | Spray Dip |
40-50 | 90-180 | 58 |
| Low-temperature treatment type | SURFDINE SD5350 series |
Liquid | Spray Dip |
33-37 | 90-180 | 589 | |
| SURFDINE EC1000 series |
Liquid | Spray Dip |
33-37 | 90-180 | 58 | ||
| Fluorine-free | SURFDINE EC2000 series |
Liquid | Spray Dip |
35-50 | 90-180 | 58 | |
| Simultaneous treatment aluminum, steel, and zinc plating | SURFDINE SD6350 series |
Liquid | Spray Dip |
35-40 | 90-180 | 589 | |
Pictograms may vary by product. Please contact us for details.
Environmentally friendly next-generation conversion coatings
An environmentally friendly next-generation conversion coating
| Compatible materials |
Features | Product Name | Appearance | Application | Standard Condition | Pictograms | |
|---|---|---|---|---|---|---|---|
| Temp. (°C) | Time (sec.) | ||||||
| Steel, zinc plating, aluminum, etc. | Zirconium-based conversion, standard type |
SURFDINE EC3200 series, EX9200 series | Liquid | Spray Dip |
30-45 | 60-180 | 5 |
| Zirconium-based conversion, one-liquid replenishing type |
SURFDINE EC4100 series |
Liquid | Spray Dip |
30-45 | 60-180 | 5 | |
| Room temperature application type |
SURFCOAT 1706 series |
Liquid | Spray Dip |
RT | - | - | |
Pictograms may vary by product. Please contact us for details.
Anticorrosive agent
Temporarily prevents materials from rusting
| Compatible materials |
Features | Product Name | Appearance | Application | Standard Condition | Pictograms | |
|---|---|---|---|---|---|---|---|
| Temp. (°C) | Time (sec.) | ||||||
| Steel | Water-based primary rust-preventing agent |
SURFBEST 11 | Liquid | Spray Dip |
RT-60 | 60-180 | 58 |
| low-yield rust prevention oil | SURFLUBE OPR-10 |
Liquid | Spray Dip Wipe |
RT | - | 89 | |
Pictograms may vary by product. Please contact us for details.
Scale removers, rust removers, and general-purpose cleaning agents
Removes rust and adhered scales from material surfaces
| Compatible materials |
Features | Product Name | Appearance | Application | Standard Condition | Pictograms | |
|---|---|---|---|---|---|---|---|
| Temp. (°C) | Time (sec.) | ||||||
| Aluminum | Acidic scale remover for aluminum | SURFCLEANER 355A series |
Liquid | Spray Dip |
35-45 | 120-300 | 578 |
| Steel | Rust remover for steel | SURFDERUST 171 |
Liquid | Dip | RT-60 | 300-600 | 59 |
| Common materials | General-purpose cleaning agent with no surfactants | SURFCLEANER IW-10 |
Liquid | Spray Dip Wipe |
RT-40 | 60-180 | 5 |
Pictograms may vary by product. Please contact us for details.
Steel
Most of our treatment agents are environmentally friendly non-chromate, and we have a product lineup that will satisfy customers with various requirements.
| Degreasing agents | SURFCLEANER Series |
|---|---|
| Non-chromate pretreatments |
SURFCOAT EC2000, EC3000 Series EC2000 can be used widely for home appliances, and the EC3000 for building materials. |
| Non-chromate Anti-finger print coatings |
SURFCOAT 6000, 7000 Series SURFCOAT 6000 Series can be used for steel pipes; 7000 Series can be widely used for home appliances. |
Process
Special
Feature

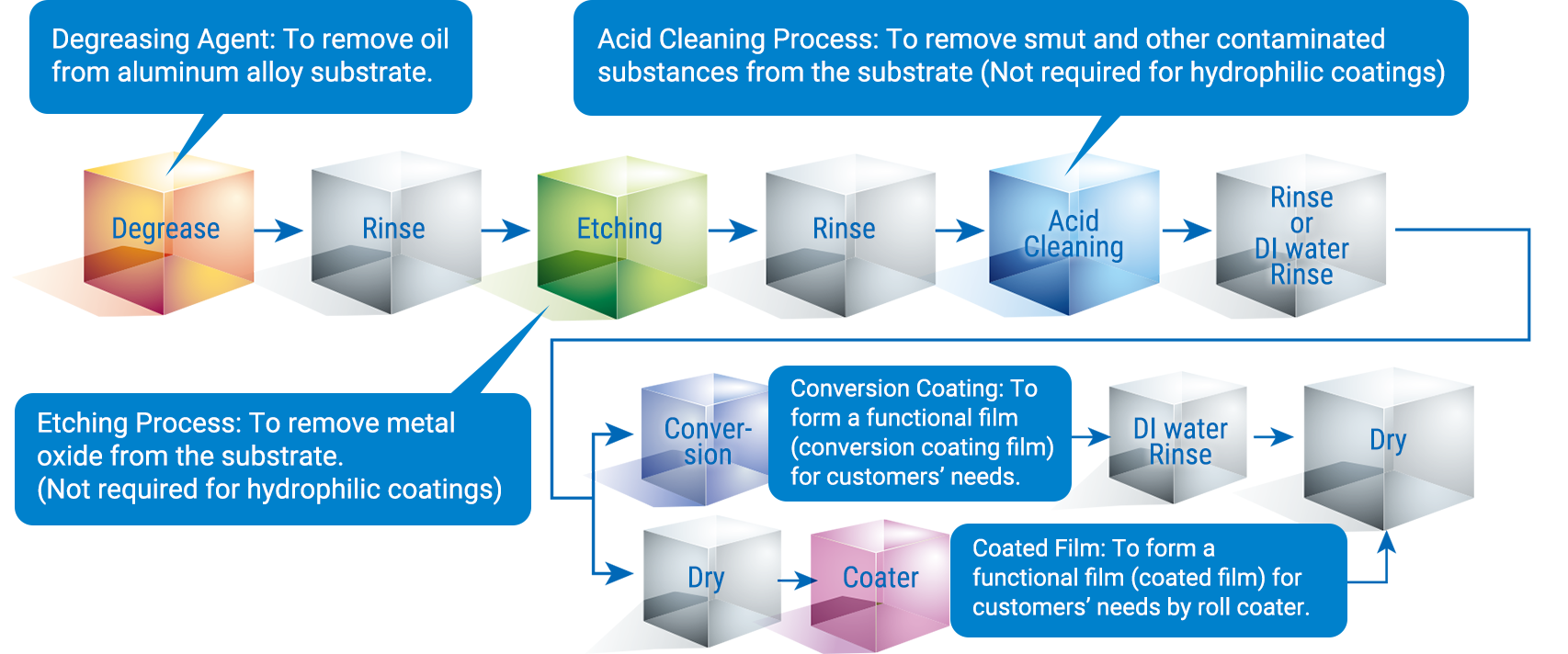

Aluminum coils
As a top manufacturer of aluminum alloy treatment agents, we provide the coil industry with various functional treatments. Our products include the SURFCLEANER EC series that are environmentally friendly degreasing agent, the ALSURF series for can ends that form coatings that endow high corrosion resistance and high functionality, and the SURFCOAT series for condenser materials for electric vehicles, which are becoming more common in recent years. We provide functional treatments that suit various needs.
Process

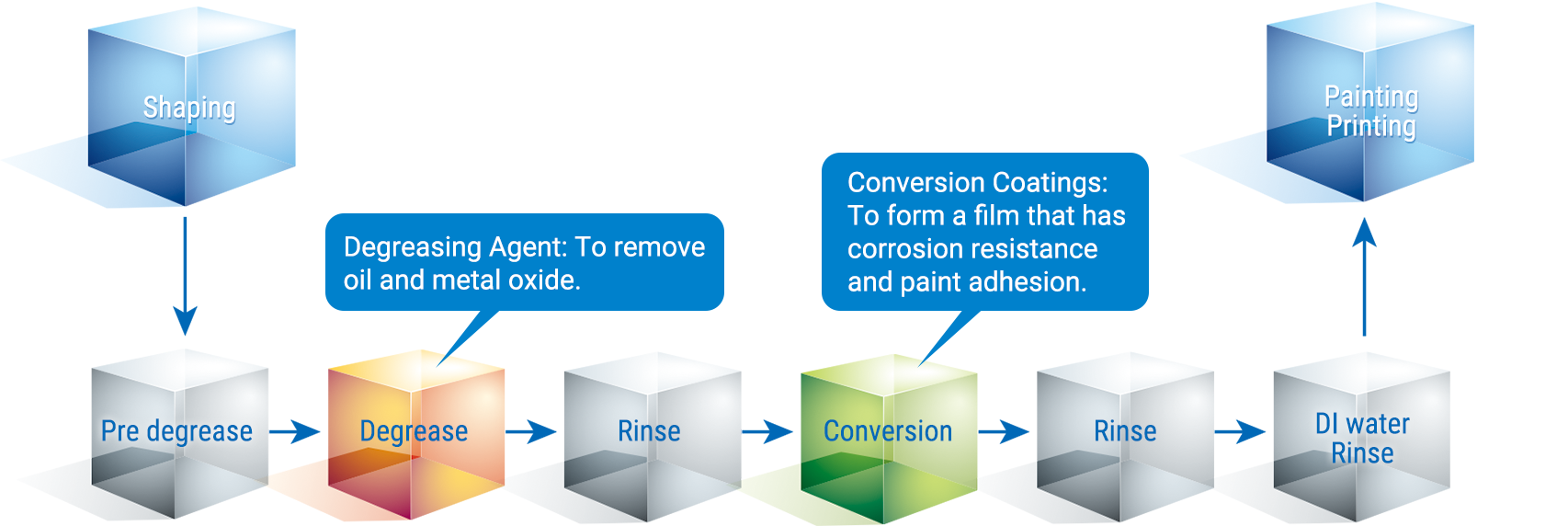

Beverage cans
As a top manufacturer of surface treatment agents for aluminum beverage cans, we provide high-function treatments. The SURFCLEANER NHC260 series and the NHC310 series are environmentally friendly non-fluorine degreasing agent, and the ALSURF 450 series are highly corrosion-resistant conversion coatings. We have a product lineup that will satisfy customers with various requirements.
Process
-
-
-
- Explosives
- Self-reactive
- Organic peroxides
-
-
-
-
- Flammable
- Self-reactive
- Self-heating
-
-
-
-
- Oxidising
- Organic peroxides
-
-
-
-
- Gases under pressure
-
-
-
-
- Corrosive to metals
- Skin corrosion
- Irritation serious eye damage
-
-
-
-
- Hazardous to the aquatic environment
-
-
-
-
- Acute toxicity
-
-
-
-
- Germ cell mutagenicity
- Carunogenicity
- Toxic to reproduction
- Respiratory sensitizer
- Specific target organ toxicity
- Aspiration hazard
-
-
-
-
- Acute toxicity
- Skin irritation
- Eye irritation
- Skin sensitizer
- Specific target organ toxicity
-
